| CROSS-LINKED
POLYETHYLENE INSULATED, PVC SHEATHED POWER CABLE. |
| |
|
| NUMBER OF CORE |
: Single and 3 cores. |
| CONDUCTOR |
: Compact round stranded annealed copper,
|
| |
Sizes 10 mm2 up to 1000 mm2 |
| INSULATION |
: Cross-linked PE |
| COLOUR |
: Natural (Translucent) |
| CORE IDENTIFICATION |
: Colour tape-White, Red, Blue. |
| SHEATH |
: PVC. |
| COLOUR |
: Black |
| SHIELD |
: Copper tape, thickness 0.1 mm. |
| CLASSIFICATION |
: Maximum conductor temperature  C. |
| |
Circuit voltage not exceeding 7,200 volts. |
| TESTING VOLTAGE |
: 11,000 volts. |
| REFERENCE |
: IEC 60502-2 |
| *REMARK |
|
|
INSULATION SHIELD LAYER
|
: SEMI-CONDUCTING COVERING REMOVE AT SPLICES
ORTERMINALS |
| |
(ทำการลอกชั้นสกรีนของฉนวนออกก่อนทำการต่อเข้ากับชุดทำปลายสาย) |
|
|
| |
|
|
| |
|

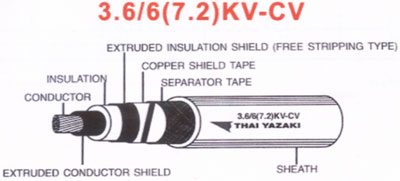

3.6/6(7.2)KV-CV
|
| |
|
IEC 60502-2
|
| |
|
|
Number
|
Nominal
|
Minimum
|
Mean
|
Mean
|
Approx.
|
Maximum
|
Minimum
|
Maximum
|
Cable
|
Standard
|
|
of
|
cross
|
number
|
value of
|
value of
|
overall
|
conductor
|
insulation
|
continuous
|
weight
|
length
|
|
core
|
sectional
|
of
|
insulation
|
sheath
|
diameter
|
resistance
|
resistance
|
current
|
(approx.)
|
|
|
|
area
|
stranded
|
thickness
|
thickness
|
|
at  C |
at  C
|
rating in
|
|
|
|
|
|
|
|
|
|
|
|
free air
|
|
|
|
|
(mm2)
|
(No.)
|
(mm)
|
(mm)
|
(mm)
|
|
|
(Ampere)
|
(kg/km)
|
(m)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1
|
**10
|
6
|
2.5
|
1.4
|
14.0
|
1.83
|
2,850
|
93
|
260
|
500/D
|
|
**16
|
6
|
2.5
|
1.5
|
15.5
|
1.15
|
2,500
|
120
|
350
|
500/D
|
|
25
|
6
|
2.5
|
1.5
|
17.5
|
0.727
|
2,150
|
160
|
480
|
500/D
|
|
35
|
6
|
2.5
|
1.5
|
18.5
|
0.524
|
1,900
|
195
|
600
|
500/D
|
|
50
|
6
|
2.5
|
1.6
|
20
|
0.387
|
1,700
|
230
|
750
|
500/D
|
|
70
|
12
|
2.5
|
1.6
|
21
|
0.268
|
1,500
|
290
|
950
|
500/D
|
|
95
|
15
|
2.5
|
1.7
|
24
|
0.193
|
1,300
|
355
|
1,200
|
500/D
|
|
120
|
18
|
2.5
|
1.7
|
25
|
0.153
|
1,200
|
410
|
1,500
|
500/D
|
|
150
|
18
|
2.5
|
1.8
|
27
|
0.124
|
1,100
|
465
|
1,800
|
500/D
|
|
185
|
30
|
2.5
|
1.8
|
28
|
0.0991
|
1,000
|
535
|
2,200
|
500/D
|
|
240
|
34
|
2.6
|
1.9
|
31
|
0.0754
|
900
|
635
|
2,800
|
500/D
|
|
300
|
34
|
2.8
|
2.0
|
34
|
0.0601
|
900
|
725
|
3,400
|
500/D
|
|
400
|
53
|
3.0
|
2.1
|
37
|
0.0470
|
850
|
840
|
4,300
|
500/D
|
|
500
|
53
|
3.2
|
2.2
|
42
|
0.0366
|
800
|
970
|
5,500
|
500/D
|
|
630
|
53
|
3.2
|
2.4
|
46
|
0.0283
|
700
|
1,140
|
7,00
|
500/D
|
|
800
|
53
|
3.2
|
2.5
|
50
|
0.0221
|
600
|
1,330
|
8,500
|
300/D
|
|
1000
|
53
|
3.2
|
2.6
|
55
|
0.0176
|
550
|
1,520
|
11,000
|
300/D
|
| |
|
|
|
|
|
|
|
|
|
|
|
3
|
**10
|
6
|
2.5
|
2.0
|
28
|
1.83
|
2,850
|
72
|
850
|
500/D
|
|
**16
|
6
|
2.5
|
2.0
|
30
|
1.15
|
2,500
|
94
|
1,100
|
500/D
|
|
25
|
6
|
2.5
|
2.1
|
35
|
0.727
|
2,150
|
120
|
1,600
|
500/D
|
|
35
|
6
|
2.5
|
2.2
|
38
|
0.524
|
1,900
|
145
|
1,900
|
500/D
|
|
50
|
6
|
2.5
|
2.3
|
40
|
0.387
|
1,700
|
175
|
2,400
|
500/D
|
|
70
|
12
|
2.5
|
2.4
|
44
|
0.268
|
1,500
|
220
|
3,100
|
500/D
|
|
95
|
15
|
2.5
|
2.5
|
48
|
0.193
|
1,300
|
270
|
4,000
|
500/D
|
|
120
|
18
|
2.5
|
2.6
|
52
|
0.153
|
1,200
|
315
|
4,900
|
500/D
|
|
150
|
18
|
2.5
|
2.8
|
55
|
0.124
|
1,100
|
360
|
6,000
|
500/D
|
|
185
|
30
|
2.5
|
2.9
|
59
|
0.0991
|
1,000
|
415
|
7,000
|
500/D
|
|
240
|
34
|
2.6
|
3.1
|
65
|
0.0754
|
900
|
495
|
9,000
|
500/D
|
|
300
|
34
|
2.8
|
3.3
|
71
|
0.0601
|
900
|
570
|
11,000
|
300/D
|
|
400
|
53
|
3.0
|
3.5
|
79
|
0.0470
|
850
|
665
|
13,500
|
300/D
|
| |
|
|
|
|
|
|
|
|
|
|
|
| |
|
*REMARK : Special protection can be produced. |
| |
|
**REMARK : Insulation shield shall be applied semi-conduction
tape. |
| |
|
D: Packing in drum. |
| |
|
|
| |
|
|
